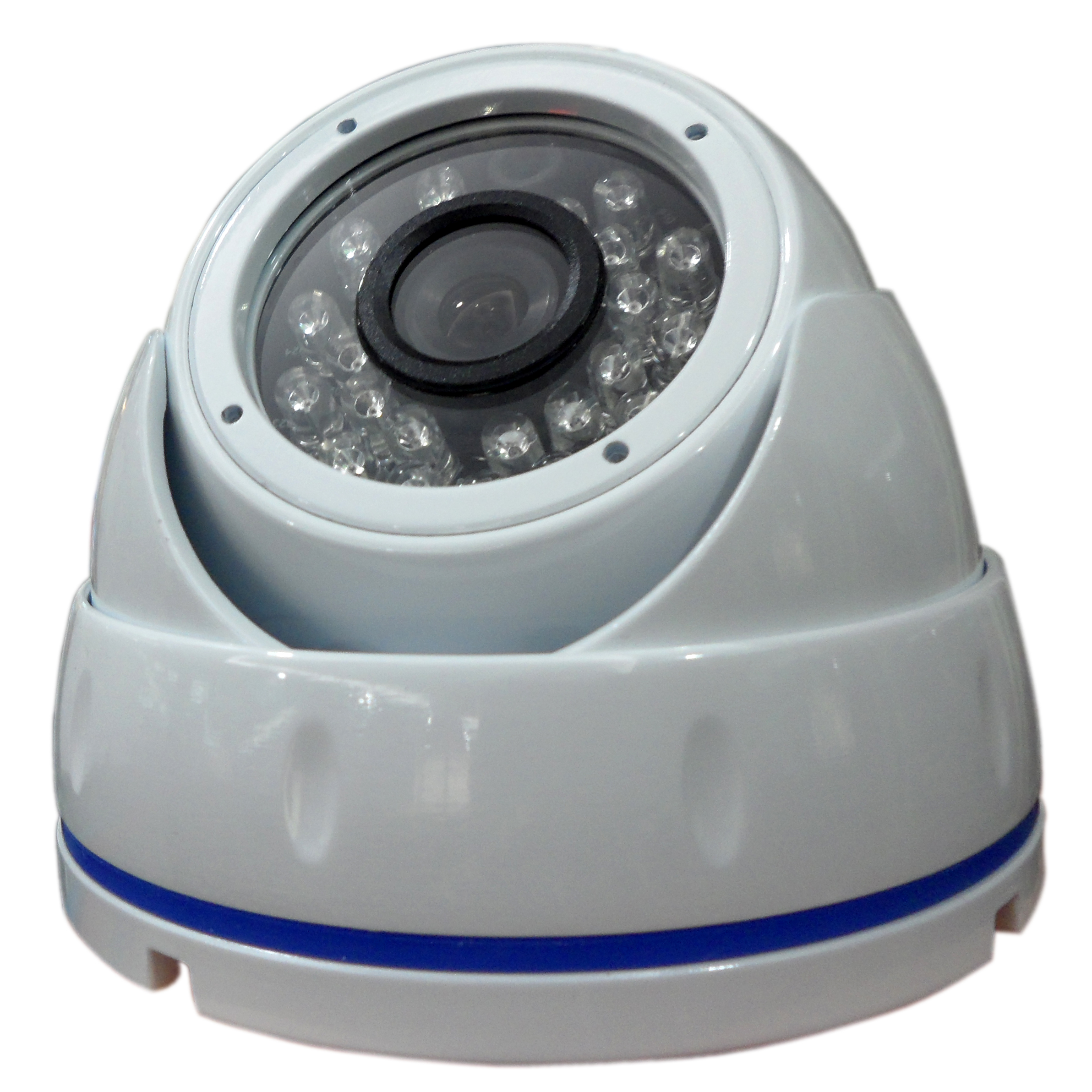

TR-433DX
TR-433DX
Product Detail
ModelTR-433HNDXTR-433QNDXTR-433DXE3-U
Pick-up device1/3" SONY Super HAD  II CCD1/3" SONY Super HAD  II CCD1/3" SONY Super HAD  II CCD (960H)
Effective pixelsNTSC:510H*492V
PAL:500H*582V
NTSC:768H*494V
PAL:752H*582V
NTSC:976H*494V
PAL:976H*582V
ResolutionColor 480TVLColor 600TVLColor 700TVL
Min.illumination0 LUX(IR on)
Scan system2:1 interlace
Sync systemInternal
lens3.6mm lens
IR Distance10-15M(24XΦ5 leds)
Electronic shutterAUTO(1/60~1/100,000) /FIXED/MANUAL
White balanceATW
Functions2DNR/ATR(DWDR)/HLC/BLC/Privacy/Motion detection/Mirror
LanguageEnglish/ChineseEnglish/ChineseEnglish/Chinese/Spaish/French/Portuguese/Italian/Russian/German/Japanese
Lightning proofYes
AGC  ON/OFF
Day&NightAuto
Gamma0.45(Default)
S/N ratiomore than 48dBmore than 50dBmore than 52dB
Video output1.0Vp-p Composite Video Output, 75 Ohm
Power supplyDC12V± 10%
Power
consumption(Max)
200mA/400mA(IR on) under DC12V

Operation temp-20°C ~50°C
OtherConstant current IR Leds PCB board
