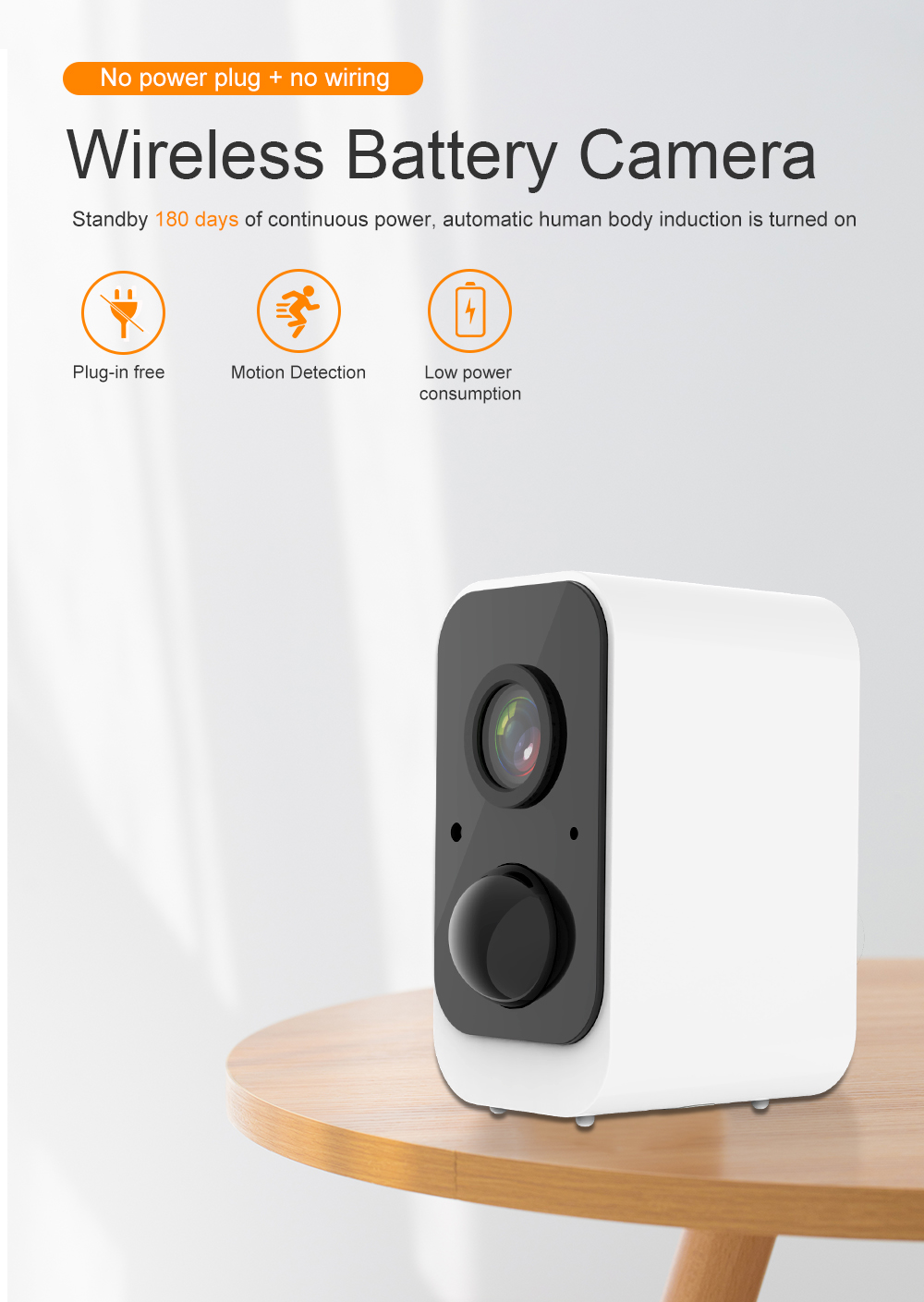

| Low-power Intelligent WIFI Camera Specification | ||
| Specification | ||
| Model NO. | TP-S2 | |
| Product Name |  Low-power Intelligent WIFI Camera | |
| Chippest | T20Z | |
| WIFI | AW-NB197SM,WIFI 2.4GHz ,IEEE802.11b/g/n | |
| PIR Distance | 10 meters | |
| SD Card Storage | Support Max 128G | |
| LED | 8pcs 850nm IR LED,10 meters IR Distance | |
| Indicator Light | Blue,Red | |
| Button | Reset Button | |
| Distribution network | Acoustic distribution network | |
| Video | TF card (10 seconds each time, can be set), support mobile phone local recording, device recording,Cloud recording(30days for free) | |
| Push Massage | Push in 1s | |
| Motion Detection | PIR motion detection, high sensitivity / medium / low level adjustable | |
| Image Sensor | Sensor | F23 |
| Resolution | 1920*1080 | |
| Size | 1/2.9" | |
| Lens | Focal Length | 2.0MM |
| Aperture | F2.4 | |
| Perspective | Diagonal 135° | |
| Audio | Horn | 8Ω/1W |
| MIC | Support, sound capture distance > 3 meters | |
| Intercom | Two-way voice intercom | |
| Echo cancellation | Own echo cancellation | |
| Howling | Howling suppression | |
| Wake-up | Wake-up Method | Mobile phone remote wakeup, PIR wake up |
| Wake up time | <500ms | |
| Power | Battery Powered | 5000mAh rechargeable lithium batteries |
| External Power Supply | Micro USB Port(DC5.0V） | |
| Working Current | 260mA/3.7V | |
| Standby Current | 200uA/3.7V | |
| Standby | 6 months | |
| USB charge | 10 hours full charge | |
| Function | ||
| Intelligent Detection | Self-owned intelligent detection algorithm to effectively reduce false positives | |
| Ultra low power consumption | Intelligent power saving, long standby, 5000mA original 18650 battery, normal use 8-12 months | |
| Simple Distribution Network | Device configuration in just 2 steps | |
